Product overview
AD815x-250M16 PCIe acquisition card.
Technical specifications
| Channels | 2, 4, 8 |
|---|---|
| Sampling Rate | 250 MS/s |
| Resolution | 16 bit |
| Input Bandwidth | DC-120 MHz |
| Input Range | ±1 V, ±2 V, ±5 V, ±10 V |
| Input Impedance | 50 Ω/1 MΩ |
| Bus | PCIe x8 Gen2 |
| Onboard Memory | 2 GB DDR3 |
| Function | Acquisition |
| Series | AD815x |
Software and integration
- FPGA secondary development supported.
- SDK support for C/C++, LabVIEW and MATLAB.
- Windows and Linux support.
- Hardware, software and manual triggering; continuous sampling mode.
- Host software for configuration, real-time data display and storage.
Available configurations
| Model | Configuration |
|---|---|
| AD8152-250M16 | 2 channel 16 bit, 250 MS/s, PCIe x8 Gen2, bandwidth DC-120 MHz |
| AD8154-250M16 | 4 channel 16 bit, 250 MS/s, PCIe x8 Gen2, bandwidth DC-120 MHz |
| AD8158-250M16 | 8 channel 16 bit, 250 MS/s, PCIe x8 Gen2, bandwidth DC-120 MHz |

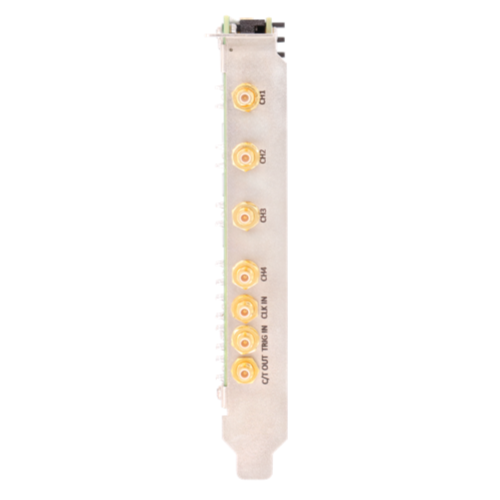

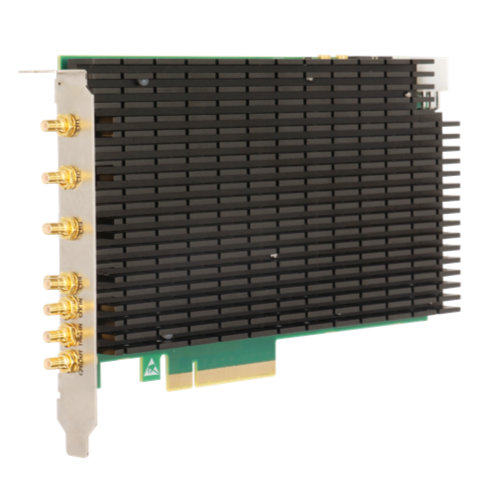

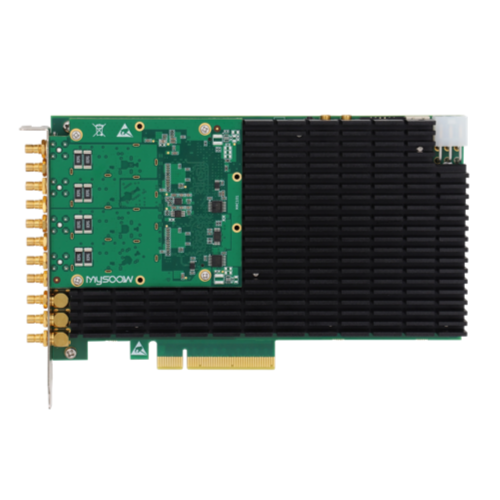

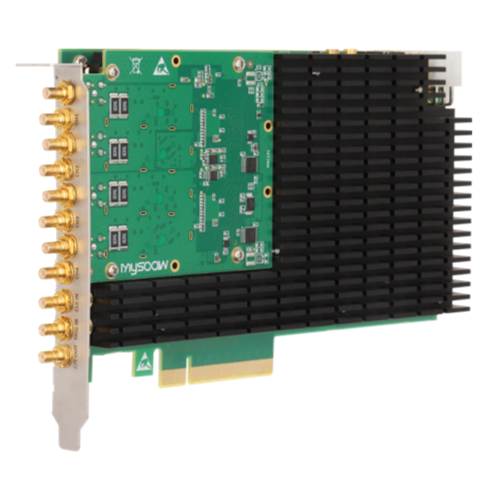

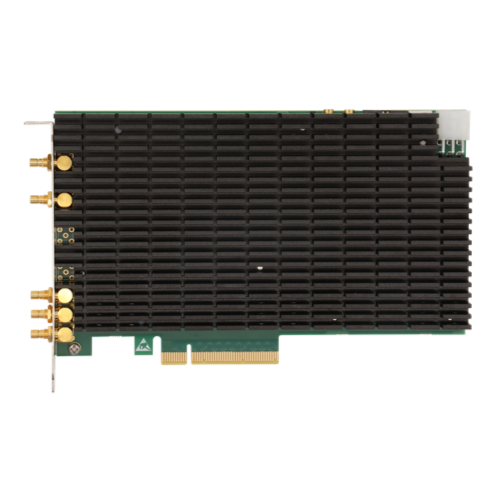

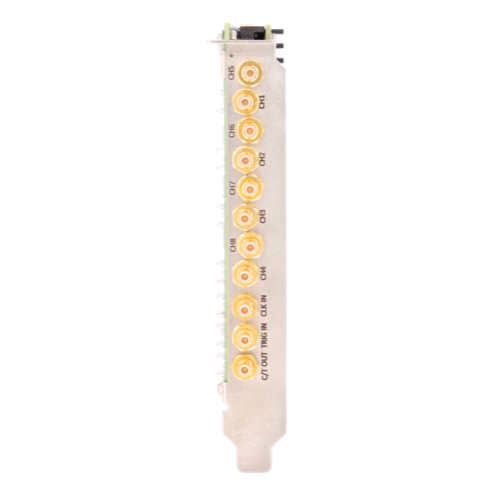

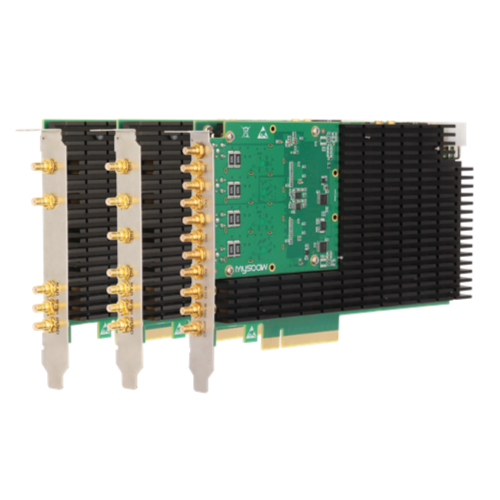

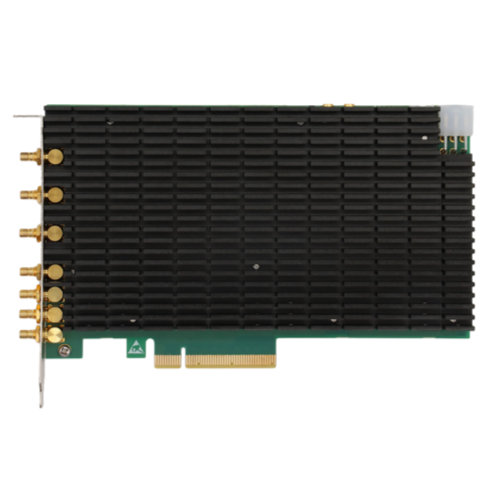

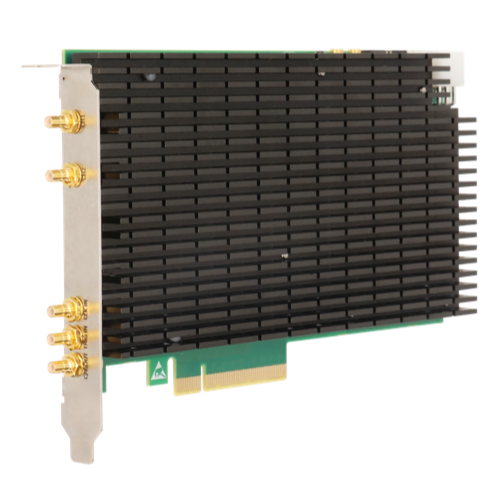

Images show available hardware configurations. Connector count and interface depend on the selected configuration.
