Product overview
AD834x-80M16 PCIe acquisition and playback card.
Technical specifications
| Channels | 2, 4 |
|---|---|
| Sampling Rate | 80 MS/s |
| Resolution | 16 bit |
| Input Bandwidth | DC-40 MHz |
| Input Range | ±1 V, ±2 V, ±5 V, ±10 V |
| Input Impedance | 50 Ω/1 MΩ |
| Output Range | ±10 V |
| Onboard Memory | 2 GB DDR3 |
| Output Resolution | 16 bit |
| Output Channels | 2, 4 |
| Playback Rate | 80 MS/s |
| Output Bandwidth | DC-10 MHz |
| Function | Acquisition & Playback |
| Series | AD834x |
Software and integration
- FPGA secondary development supported.
- SDK support for C/C++, LabVIEW and MATLAB.
- Windows and Linux support.
- Hardware, software and manual triggering; continuous sampling mode.
- Host software for configuration, real-time data display and storage.

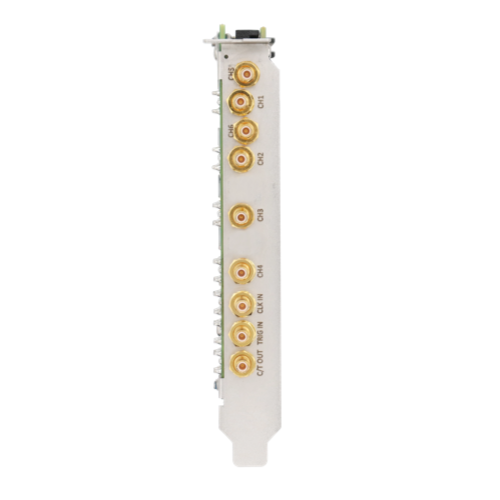

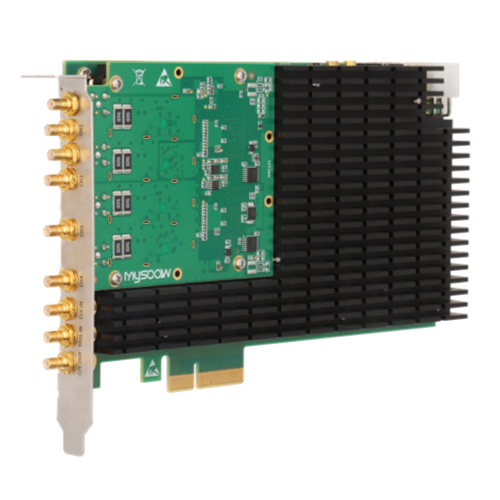

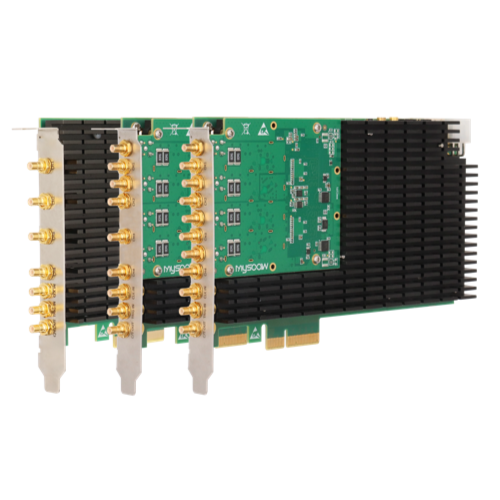

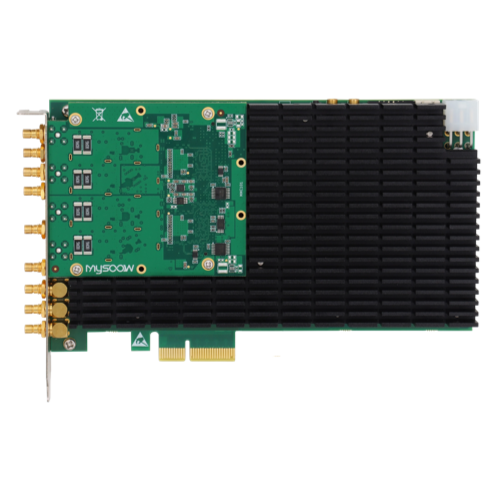

Images show available hardware configurations. Connector count and interface depend on the selected configuration.
