Product overview
ADM715x-100M14 modular acquisition instrument.
Technical specifications
| Channels | 2, 4, 8 |
|---|---|
| Sampling Rate | 100 MS/s |
| Resolution | 14 bit |
| Input Bandwidth | DC-50 MHz |
| Input Range | ±1 V, ±2 V, ±5 V, ±10 V |
| Input Impedance | 50 Ω/1 MΩ |
| Bus | RJ45, USB 3.0, 10G optical |
| Onboard Memory | 1 GB DDR3 |
| Function | Acquisition |
| Series | ADM715x |
Software and integration
- FPGA secondary development supported.
- SDK support for C/C++, LabVIEW and MATLAB.
- Windows and Linux support.
- Hardware, software and manual triggering; continuous sampling mode.
- Host software for configuration, real-time data display and storage.
Available configurations
| Model | Configuration |
|---|---|
| ADM7152R-100M14 | 2 channel 14 bit, 100 MS/s, RJ45, bandwidth DC-50 MHz |
| ADM7154R-100M14 | 4 channel 14 bit, 100 MS/s, RJ45, bandwidth DC-50 MHz |
| ADM7158R-100M14 | 8 channel 14 bit, 100 MS/s, RJ45, bandwidth DC-50 MHz |
| ADM7152U-100M14 | 2 channel 14 bit, 100 MS/s, USB 3.0, bandwidth DC-50 MHz |
| ADM7154U-100M14 | 4 channel 14 bit, 100 MS/s, USB 3.0, bandwidth DC-50 MHz |
| ADM7158U-100M14 | 8 channel 14 bit, 100 MS/s, USB 3.0, bandwidth DC-50 MHz |
| ADM7152T-100M14 | 2 channel 14 bit, 100 MS/s, 10G optical port, bandwidth DC-50 MHz |
| ADM7154T-100M14 | 4 channel 14 bit, 100 MS/s, 10G optical port, bandwidth DC-50 MHz |
| ADM7158T-100M14 | 8 channel 14 bit, 100 MS/s, 10G optical port, bandwidth DC-50 MHz |

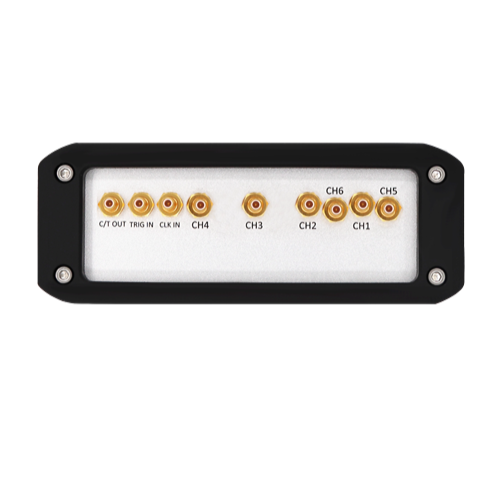

Images show available hardware configurations. Connector count and interface depend on the selected configuration.
