Product overview

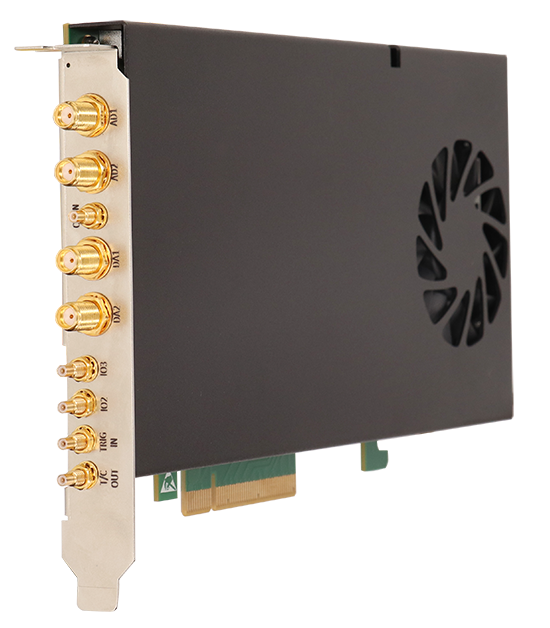

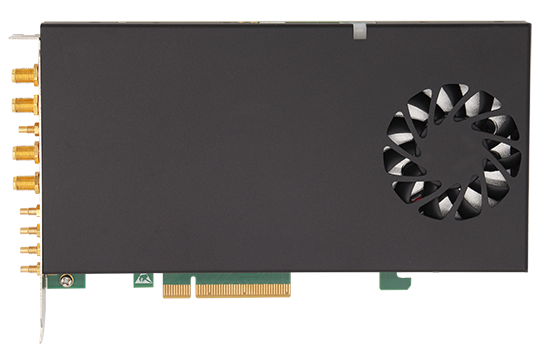

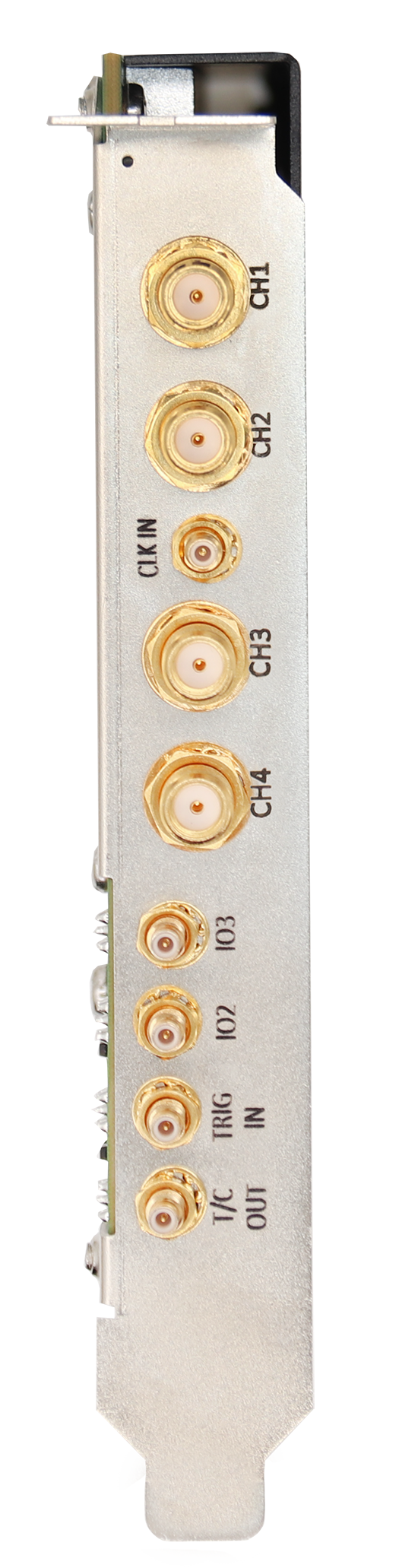

AD8374-1G14 is a PCIe data acquisition and playback card with two 1 GS/s, 14-bit analog input channels and two 2 GS/s, 16-bit waveform output channels. Its PCIe x8 Gen3 interface and 8 GB DDR4 onboard memory support integration into PC-based waveform recording and signal playback systems.
Acquisition specifications (ADC)
| Input channels | 2, synchronous sampling |
|---|---|
| Sampling rate per channel | 1 GS/s |
| ADC resolution | 14 bit |
| Input bandwidth | DC–500 MHz |
| Input range | ±1 V, ±2 V |
| Input coupling | AC/DC |
| Input impedance | 50 Ω |
Playback specifications (DAC)
| Output channels | 2, synchronous playback |
|---|---|
| Playback rate per channel | 2 GS/s |
| DAC resolution | 16 bit |
| Output bandwidth | DC–420 MHz |
| Output range | ±2 V |
| Output coupling | DC |
| Output impedance | 50 Ω |
The specification and ordering tables list 2 GS/s playback. The source feature list also mentions 1 GS/s playback; confirm the required operating configuration when requesting a quotation.
Interface, memory and triggering
| Host interface | PCIe x8 Gen3 |
|---|---|
| Onboard memory | 8 GB DDR4 |
| Trigger modes | Hardware, software and manual triggering |
| Acquisition mode | Continuous sampling supported |
Software and integration
The MSDK software development kit supports Windows and Linux, with integration support for C/C++, MATLAB, LabVIEW, Python, C# and Qt. The supplied software includes interface libraries, demonstration examples and development documentation. Host demo software provides board configuration, real-time data display and storage.
Applications and selection guidance
Typical applications include waveform recording, multi-channel transient recording, mass spectrometry, particle physics and life-science instrumentation. Select the analog input bandwidth and sampling rate for the signal being measured, then review the output bandwidth and playback rate separately for the waveform to be generated.
Before integration, confirm the required input range and coupling, trigger arrangement, acquisition/playback timing and sustained transfer requirements with the host PC. Onboard memory capacity does not establish continuous host-to-disk recording performance.
